XML Generation
Edit & Tools for XML generation
The Edit group has these icons, which are self-explanatory.

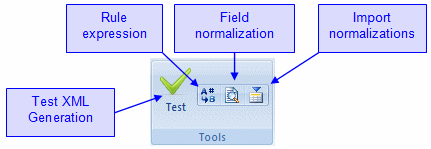

The Tools group has these icons:
Test for a Questionnaire opens the Data Collection (PC) Program, see HERE for details,
otherwise ...
Test does an immediate XML conversion and shows the results as below:

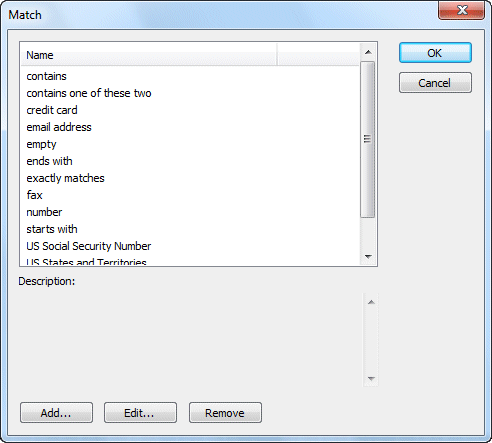

Rule expression and Field normalization allow maintenance of
the RegEx expressions used for Rules and for Field Display, providing Add,
Edit and Remove options for the entries in the list.

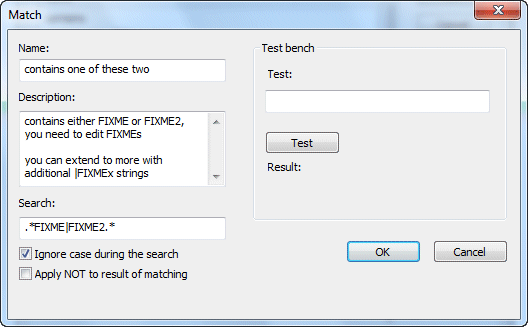

The "contains one of these two" entry shows this when edited. Test RegEx
expressions by entering values in the test Bench to replace "FIXMEx" values.
Import custom field normalization expressions allows copying of an expression
in the form into the Field normalization list. This is normally infrequent and
means you intend to reuse an expression peculiar to this document. All
expression not currently in the list are added, you can then remove any NOT
required and edit expressions you want to retain.
